Mobile Auto-Sampler
Automatic Water Samplers Equipped for Use in Any Sampling Application
As part of the Hydroflux Utilities support program for our customers, we offer monthly compliance monitoring for discharge water (e.g. trade waste, irrigation, river discharge). By bundling this task with routine service visits from Hydroflux specialists, we can ensure that your wastewater plant is consistently working to specification.
Many plants have a high degree of variation in water quality and flow, so obtaining a true snapshot of water quality can be difficult without continuous and sometimes flow-paced sampling.
Sampling at high frequency over an extended period enables a flow and quality profile to be established. This provides real data on the proportions of specific contaminants in the wastewater, so plant equipment can be designed to achieve site-specific discharge limits.
Applications
- Discharge compliance monitoring
- Project planning and justification
- Performance monitoring for solids and nutrient removal
- Assessing the health of microbiological treatment systems
- Process water quality monitoring
What to Expect
- Access to the latest, efficient high quality equipment
- Short-term or long-term rental programs
- Comprehensive technical support
- Timely delivery and setup of equipment
- On-site training for your team
Expert Service or DIY
Hydroflux can manage the entire sampling process, through the provision of specialty equipment and labour across ANZ however for customers who prefer to use in-house labour, the following guidelines are applicable.

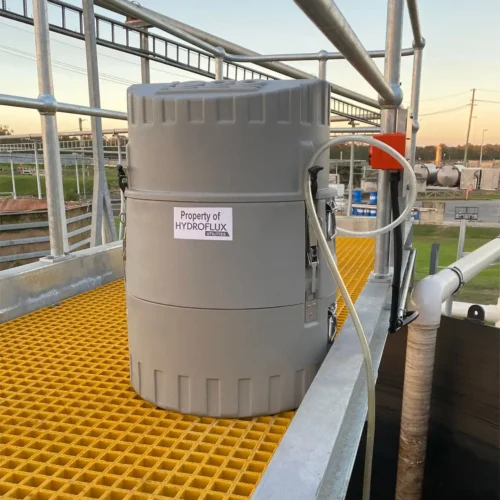

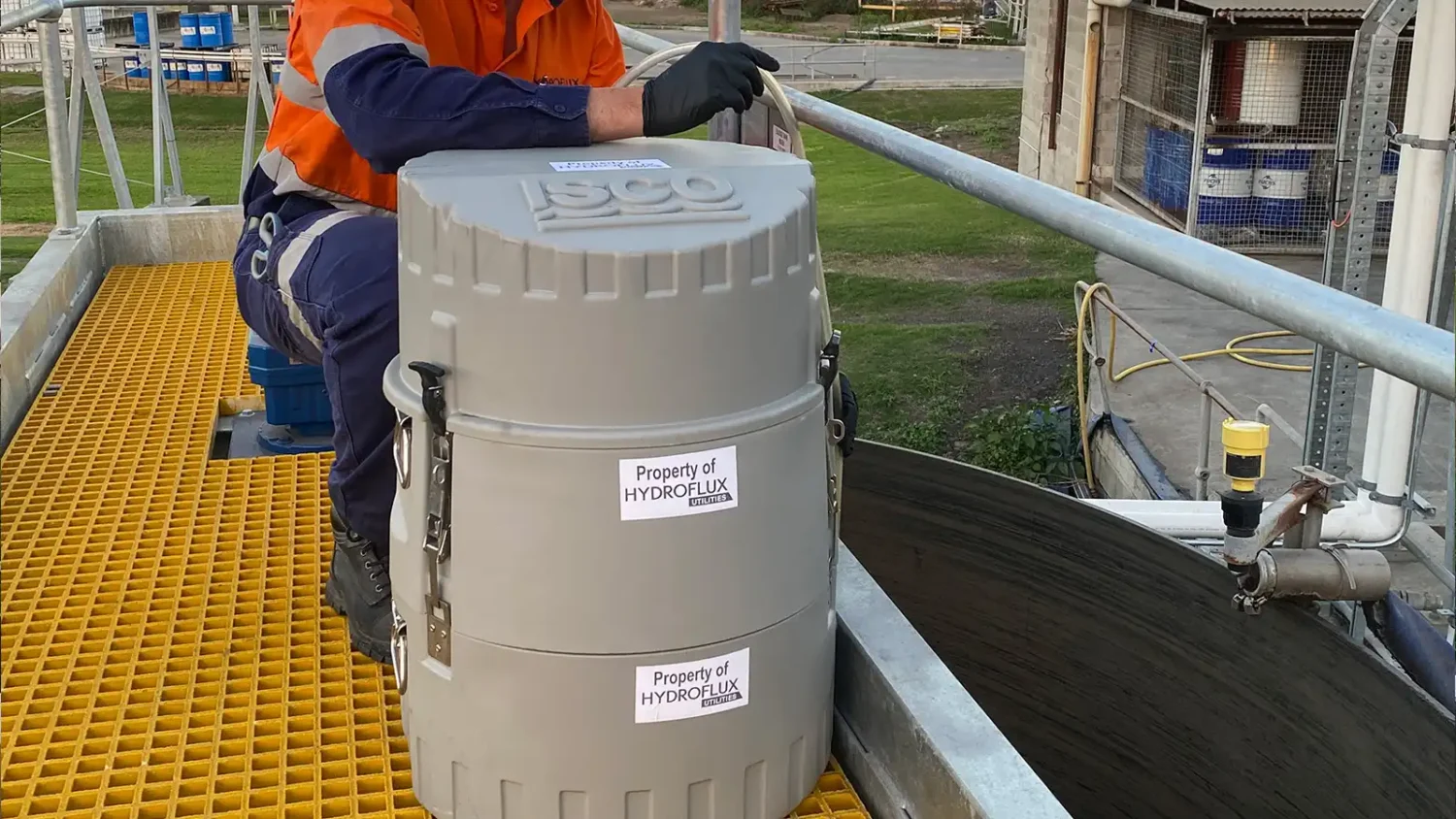

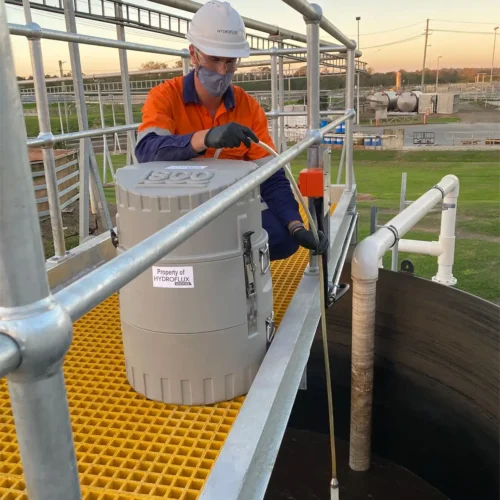

When selecting a location for your sampler, it’s crucial to consider several factors to ensure optimal functionality and accuracy. Position the sampler near the water source for easy access, and ensure that power and flow monitoring facilities are available if required.
To maintain sample integrity, place the sampler out of direct sunlight to keep the samples cool, and ensure that ice is readily available for sample cooling, depending on the specific analyses required. This strategic setup helps in achieving precise and reliable sampling results.
Equipment Details
- Available with either discrete or composite sample bottles 5-20 m suction tubing included
- Strainer on suction tubing to prevent ingress of large particles
- ABS plastic outer casing with UV-resistant coating
- Automatic air and liquid purge before and after sample collection
- Pump calibration and liquid detection sensors ensure accurate sample volumes
- The insulated base holds 13 kg of ice for sample cooling (if required)
- 5 m maximum suction lift
Service Requirements
- Power supply: 240 V / 50 Hz – 15 amp
- If flow-dependant sampling is required, an appropriate flow monitoring signal plug is necessary for the sampler to plug into
Dimensions and Weight
- 51 x 51 x 69 cm (L x W x H)
- 16.5 kg
